Learnew sell well Free samples Can provide customization 1414 10W 12W 20W 25W COB LED CHIP
1414 COB LED CHIP Details
| FLIP CHIP | POWER | CCT | LM/W | IF | VF | Circuit | Chips | WHOLE SIZE | EMIT SIZE | VIEW ANGLE | CRI | SUBSTRATE |
| 1414 SERIES | 5W | 2700-6500K | 90-110 | 300mA | 15-17V | 5S2P | F1022 | 14x14MM | 11MM | 120° | 80 | Aluminum |
| 7W | 300mA | 21-24V | 7S4P | F1022 | 14x14MM | 11MM |
| 1414 SERIES | 10W-12W | 2700-6500K | 90-110 | 260-320mA | 35-38V | 12S2P | F1022 | 14x14MM | 11MM | 120° | 80 |
| 20W-25W | 550-700mA | 35-38V | 12S4P | F1022 | 14x14MM | 11MM |
Design Advantage
- High density
- High power series
- Low thermal resistance
- SDCM<5
- CRI available in 80/90/95+
- Flip chip technology
- Good stability
- Cost performance
Application
- LED spotlight
- LED car light
- LED downlight
- LED tracking light
- LED wall lamp
- LED bulb
- LED Fresh light

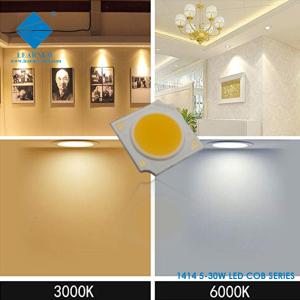

1414 COB LED picture
FAQ
Q1: Do you supply OEM,ODM service?
A1: YES,absolutely it can be realized.Learnew focus on OEM & ODM service more than 7 years.
Q2:All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs,including products parameters,application, you contact way and quantity,our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price. Be our fans on alibaba or add learnew opto to “my favorite stores”, you will always get our discount and coupon information at the first time.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. You should leave the receiver's information when you place the order, then we will send the goods according the address you have left. The shipping cost are based on your order's volume and weight, you can check on alibaba or ask our team.
Q6: How to place an order? A6: You can check the shipping cost and discount
information online, and place order directly on Alibaba. Or you can contact us for the order details, we will reply you in mins.
Q7: What payment terms are available?
A7: T/T,PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.ng Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
